PRPDUCT INTRODUCTION

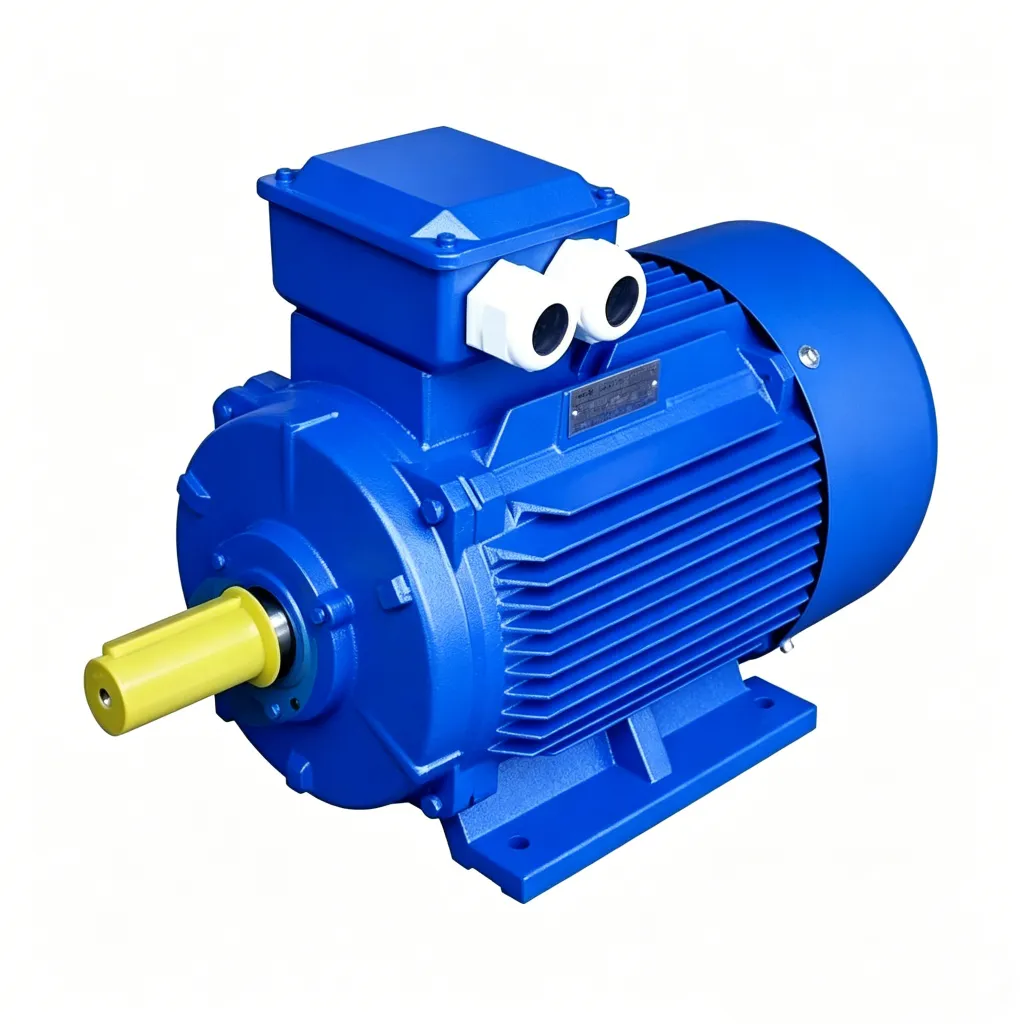

The IE2 series 3 phase ac induction motors are the successor to the IE1 series motors, and are general-purpose, fully enclosed, self-ventilated, squirrel cage type three phase asynchronous motors.

The IE2 series three phase ac electric motors are widely used in various fields, such as machine tools, water pumps, fans, and compressors, They are also suitable for transportation, mixing, printing, agricultural machinery, food processing, and other applications where flammable, explosive, or corrosive gases are not present.

TECHNICAL PARAMETERS

Type	Rated		Rated	Rated current			Efficiency	Power	Rated	Ist/In	Tst/Tn	Tmax/Tn	Inertia	Weight
	power		speed	at				factor	torque				Jm
				380V	400V	415V
	(kW)	(HP)	(r/min)	(A)	(A)	(A)	(η%)	(cosφ)	(N.m)	(times)	(times)	(times)	(kgm2)	(kg)
380V 50Hz Synchronous Speed 3000 r/min (2 poles)
Y2-631-2	0.18	0.25	2720	0.53	0.50	0.48	65.0	0.80	0.6	5.5	2.2	2.2	0.00018	12
Y2-632-2	0.25	0.34	2720	0.69	0.66	0.63	68.0	0.81	0.9	5.5	2.2	2.2	0.00019	13
Y2-711-2	0.37	0.5	2740	0.99	0.94	0.91	70.0	0.81	1.3	6.1	2.2	2.2	0.0003	14
Y2-712-2	0.55	0.75	2740	1.40	1.33	1.28	73.0	0.82	1.9	6.1	2.2	2.2	0.00035	15
Y2-801-2	0.75	1	2830	1.83	1.74	1.68	75.0	0.83	2.5	6.1	2.2	2.3	0.00075	16
Y2-802-2	1.1	1.5	2830	2.61	2.48	2.39	76.2	0.84	3.7	7	2.2	2.3	0.0009	17
Y2-90S-2	1.5	2	2840	3.46	3.28	3.16	78.5	0.84	5.0	7	2.2	2.3	0.0012	22
Y2-90L-2	2.2	3	2840	4.85	4.61	4.45	81.0	0.85	7.4	7	2.2	2.3	0.0014	25
Y2-100L-2	3	4	2870	6.34	6.03	5.81	82.6	0.87	10	7.5	2.2	2.3	0.0029	33
Y2-112M-2	4	5.5	2890	8.20	7.79	7.51	84.2	0.88	13	7.5	2.2	2.3	0.0055	45
Y2-132S-2	5.5	7.5	2900	11.1	10.5	10.1	85.7	0.88	18	7.5	2.2	2.3	0.0109	64
Y2-132S2-2	7.5	10	2900	14.9	14.1	13.6	87.0	0.88	25	7.5	2.2	2.3	0.0126	70
Y2-160M-2	11	15	2900	21.2	20.2	19.5	88.4	0.89	36	7.5	2.2	2.3	0.0377	117
Y2-160M2-2	15	20	2930	28.6	27.2	26.2	89.4	0.89	49	7.5	2.2	2.3	0.0449	125
Y2-160L-2	18.5	25	2930	34.7	33.0	31.8	90.0	0.90	60	7.5	2	2.3	0.055	147
Y2-180M-2	22	30	2940	41.0	39.0	37.6	90.5	0.90	71	7.5	2	2.3	0.075	180
Y2-200L-2	30	40	2950	55.4	52.6	50.7	91.4	0.90	97	7.5	2	2.3	0.124	240
Y2-200L2-2	37	50	2950	67.9	64.5	62.2	92.0	0.90	120	7.5	2	2.3	0.139	255
Y2-225M-2	45	60	2950	82.1	78.0	75.2	92.5	0.90	146	7.5	2	2.3	233	309
Y2-250M-2	55	75	2970	99.8	94.8	91.4	93.0	0.90	177	7.5	2	2.3	0.312	403
Y2-280S-2	75	100	2970	135.3	128.5	123.9	93.6	0.90	241	7.5	2	2.3	0.579	544
Y2-280M-2	90	125	2970	160.0	152.0	146.5	93.9	0.91	289	7.5	2	2.3	0.675	620
Y2-315S-2	110	150	2970	195.4	185.6	178.9	94.0	0.91	354	7.1	1.8	2.2	1.18	980
Y2-315M-2	132	180	2970	233.2	221.6	213.6	94.5	0.91	424	7.1	1.8	2.2	1.82	1080
Y2-315L1-2	160	220	2980	279.3	265.4	255.8	94.6	0.92	513	7.1	1.8	2.2	2.08	1160
Y2-315L2-2	200	270	2980	348.4	331.0	319.0	94.8	0.92	641	7.1	1.8	2.2	2.41	1190
Y2-355M1-2	220	300	2985	381.7	362.6	349.5	95.2	0.92	704	7.1	1.6	2.2	2.79	1590
Y2-355M2-2	250	340	2985	433.7	412.0	397.1	95.2	0.92	800	7.1	1.6	2.2	3.56	1760
Y2-355L1-2	280	380	2985	484.7	460.5	443.8	95.4	0.92	896	7.1	1.6	2.2	3.86	1790
Y2-355L2-2	315	430	2985	545.3	518.0	499.3	95.4	0.92	1008	7.1	1.6	2.2	4.16	1850
Y2400M1-2	355	480	2990	610.7	580.2	559.2	96.0	0.92	1134	7	1.5	2	7.63	2650
Y2-400M2-2	400	540	2990	688.1	653.7	630.1	96.0	0.92	1278	7	1.5	2	8.60	2800
Y2-400L1-2	450	600	2990	774.1	735.4	708.9	96.0	0.92	1437	7	1.5	2	9.68	3000
Y2-400L2-2	500	680	2990	860.2	817.2	787.6	96.0	0.92	1597	7	1.5	2	10.75	3230
380V 50Hz Synchronous Speed 1500 r/min (4 poles)
Y2-631-4	0.12	0.16	1310	0.44	0.42	0.41	57.0	0.72	0.9	4.4	2.1	2.2	0.00027	13
Y2-632-4	0.18	0.25	1310	0.62	0.59	0.57	60.0	0.73	1.3	4.4	2.1	2.2	0.00032	14
Y2-711-4	0.25	0.34	1330	0.79	0.75	0.72	65.0	0.74	1.8	5.2	2.1	2.2	0.00045	15
Y2-712-4	0.37	0.5	1330	1.12	1.06	1.02	67.0	0.75	2.7	5.2	2.1	2.2	0.00051	16
Y2-801-4	0.55	0.75	1390	1.57	1.49	1.44	71.0	0.75	3.8	5.2	2.4	2.3	0.0018	17
Y2-802-4	0.75	1	1390	2.05	1.95	1.88	73.0	0.76	5.2	6	2.3	2.3	0.0021	18
Y2-90S-4	1.1	1.5	1400	2.85	2.71	2.61	76.2	0.77	7.5	6	2.3	2.3	0.0021	22
Y2-90L-4	1.5	2	1400	3.68	3.49	3.37	78.5	0.79	10	6	2.3	2.3	0.0027	27
Y2-100L1-4	2.2	3	1430	5.09	4.84	4.67	81.0	0.81	15	7	2.3	2.3	0.0054	34
Y2-100L2-4	3	4	1430	6.73	6.39	6.16	82.6	0.82	20	7	2.3	2.3	0.0067	38
Y2-112M-4	4	5.5	1430	8.80	8.36	8.06	84.2	0.82	27	7	2.3	2.3	0.0095	43
Y2-132S-4	5.5	7.5	1440	11.7	11.2	10.8	85.7	0.83	36	7	2.3	2.3	0.0214	68
Y2-132M-4	7.5	10	1440	15.6	14.8	14.3	87.0	0.84	50	7	2.3	2.3	0.0296	81
Y2-160M-4	11	15	1460	22.5	21.4	20.6	88.4	0.84	72	7	2.2	2.3	0.0747	123
Y2-160L-4	15	20	1460	30.0	28.5	27.5	89.4	0.85	98	7	2.2	2.3	0.0918	144
Y2-180M-4	18.5	25	1460	36.7	34.9	33.6	90.0	0.85	121	7.5	2.2	2.3	0.139	182
Y2-180L-4	22	30	1470	42.9	40.8	39.3	90.5	0.86	143	7.5	2.2	2.3	0.158	190
Y2-200L-4	30	40	1470	58.0	55.1	53.1	91.4	0.86	195	7.2	2.2	2.3	0.262	270
Y2-225S-4	37	50	1470	71.1	67.5	65.1	92.0	0.86	240	7.2	2.2	2.3	0.406	284
Y2-225M-4	45	60	1480	85.9	81.7	78.7	92.5	0.86	290	7.2	2.2	2.3	0.469	320
Y2-250M-4	55	75	1480	103.3	98.1	94.6	93.0	0.87	355	7.2	2.2	2.3	0.66	427
Y2-280S-4	75	100	1480	139.9	132.9	128.1	93.6	0.87	484	7.2	2.2	2.3	1.12	562
Y2-280M-4	90	125	1480	167.4	159.0	153.3	93.9	0.87	581	7.2	2.2	2.3	1.46	667
Y2-315S-4	110	150	1480	201.0	190.9	184.0	94.5	0.88	710	6.9	2.1	2.2	3.11	1000
Y2-315M-4	132	180	1490	240.4	228.4	220.1	94.8	0.88	846	6.9	2.1	2.2	3.62	1100
Y2-315L1-4	160	220	1490	287.8	273.4	263.6	94.9	0.89	1026	6.9	2.1	2.2	4.13	1160
Y2-315L2-4	200	270	1490	359.8	341.8	329.4	94.9	0.89	1282	6.9	2.1	2.2	4.94	1270
Y2-355M1-4	220	300	1490	390.1	370.6	357.2	95.2	0.90	1410	6.9	2.1	2.2	5.18	1570
Y2-355M2-4	250	340	1490	443.3	421.2	405.9	95.2	0.90	1602	6.9	2.1	2.2	5.67	1700
Y2-355L1-4	280	380	1490	496.5	471.7	454.7	95.2	0.90	1795	6.9	2.1	2.2	6.16	1790
Y2-355L2-4	315	430	1490	558.6	530.7	511.5	95.2	0.90	2019	6.9	2.1	2.2	6.66	1850
Y2-400M1-4	355	480	1490	627.6	596.2	574.6	95.5	0.90	2275	6.9	1.7	2	13.27	3000
Y2-400M2-4	400	540	1490	703.4	668.2	644.1	96.0	0.90	2564	6.9	1.7	2	14.95	3150
Y2-400L1-4	450	600	1490	791.3	751.8	724.6	96.0	0.90	2884	6.9	1.7	2	16.82	3320
Y2-400L2-4	500	680	1490	879.3	835.3	805.1	96.0	0.90	3205	6.9	1.7	2	18.69	3560
380V 50Hz Synchronous Speed 1000 r/min (6 poles)
Y2-711-6	0.18	0.25	850	0.74	0.70	0.68	56.0	0.66	2.0	4	1.9	2	0.00065	9.5
Y2-712-6	0.25	0.34	850	0.95	0.90	0.87	59.0	0.68	2.8	4	1.9	2	0.00074	11
Y2-801-6	0.37	0.5	890	1.30	1.23	1.19	62.0	0.70	4.0	4.7	1.9	2	0.00158	17
Y2-802-6	0.55	0.75	890	1.79	1.70	1.64	65.0	0.72	5.9	4.7	1.9	2.1	0.0021	19
Y2-90S-6	0.75	1	910	2.29	2.18	2.10	69.0	0.72	7.9	5.5	2	2.1	0.0029	23
Y2-90L-6	1.1	1.5	910	3.18	3.02	2.91	72.0	0.73	12	5.5	2	2.1	0.0035	25
Y2-100L-6	1.5	2	940	4.00	3.80	3.66	76.0	0.75	15	5.5	2	2.1	0.0069	33
Y2-112M-6	2.2	3	940	5.57	5.29	5.10	79.0	0.76	22	6.5	2	2.1	0.0138	45
Y2-132S-6	3	4	940	7.40	7.03	6.78	81.0	0.76	30	6.5	2.1	2.1	0.0286	63
Y2-132M1-6	4	5.5	960	9.75	9.26	8.93	82.0	0.76	40	6.5	2.1	2.1	0.0357	73
Y2-132M2-6	5.5	7.5	960	12.9	12.3	11.8	84.0	0.77	55	6.5	2.1	2.1	0.0449	84
Y2-160M-6	7.5	10	960	17.2	16.3	15.8	86.0	0.77	75	6.5	2	2.1	0.0881	119
Y2-160L-6	11	15	970	24.5	23.3	22.4	87.5	0.78	108	6.5	2	2.1	0.116	147
Y2-180L-6	15	20	970	31.6	30.0	28.9	89.0	0.81	148	7	2	2.1	0.207	195
Y2-200L1-6	18.5	25	970	38.6	36.6	35.3	90.0	0.81	182	7	2.1	2.1	0.315	220
Y2-200L2-6	22	30	970	44.7	42.5	41.0	90.0	0.83	217	7	2.1	2.1	0.36	250
Y2-225M-6	30	40	970	59.3	56.3	54.3	91.5	0.84	295	7	2.1	2.1	0.547	292
Y2-250M-6	37	50	970	71.1	67.5	65.1	92.0	0.86	364	7	2.1	2.1	0.834	408
Y2-280S-6	45	60	980	85.9	81.7	78.7	92.5	0.86	439	7	2.1	2	1.39	536
Y2-280M-6	55	75	980	104.7	99.5	95.9	92.8	0.86	536	7	2.1	2	1.65	595
Y2-315S-6	75	100	980	141.7	134.6	129.8	93.5	0.86	731	7	2	2	4.11	990
Y2-315M-6	90	125	980	169.5	161.0	155.2	93.8	0.86	877	7	2	2	4.28	1080
Y2-315L1-6	110	150	980	206.7	196.4	189.3	94.0	0.86	1072	6.7	2	2	5.45	1150
Y2-315L2-6	132	180	990	244.7	232.5	224.1	94.2	0.87	1273	6.7	2	2	6.12	1210
Y2-355M1-6	160	220	990	295.7	280.9	270.8	94.5	0.87	1543	6.7	1.9	2	8.85	1600
Y2-355M2-6	200	270	990	365.4	347.1	334.6	94.5	0.88	1929	6.7	1.9	2	9.55	1700
Y2-355L1-6	220	300	990	402.0	381.9	368.1	94.5	0.88	2122	6.7	1.9	2	10.09	1790
Y2-355L2-6	250	340	990	456.8	433.9	418.2	94.5	0.88	2412	6.7	1.9	2	10.63	1800
Y2-400M1-6	315	430	990	585.8	556.5	536.4	95.0	0.86	3039	6.5	1.7	2	18.21	3050
Y2-400M2-6	355	480	990	660.2	627.2	604.5	95.0	0.86	3424	6.5	1.7	2	19.32	3180
Y2-400L1-6	400	540	990	743.9	706.7	681.1	95.0	0.86	3859	6.5	1.7	2	21.86	3360
Y2-400L2-6	450	600	990	836.9	795.0	766.3	95.0	0.86	4341	6.5	1.7	2	22.31	3580
380V 50Hz Synchronous Speed 750 r/min (8 poles)
Y2-801-8	0.18	0.25	630	0.88	0.84	0.80	51	0.61	2.7	3.3	1.8	1.9	0.00158	17
Y2-802-8	0.25	0.34	640	1.15	1.10	1.06	54	0.61	3.7	3.3	1.8	1.9	0.0021	19
Y2-90S-8	0.37	0.5	660	1.49	1.41	1.36	62	0.61	5.4	4	1.8	1.9	0.0029	23
Y2-90L-8	0.55	0.75	660	2.17	2.07	1.99	63	0.61	8.0	4	1.8	2	0.0035	25
Y2-100L1-8	0.75	1	690	2.40	2.28	2.19	71	0.67	10	4	1.8	2	0.0069	33
Y2-100L2-8	1.1	1.5	690	3.32	3.15	3.04	73	0.69	15	5	1.8	2	0.0107	38
Y2-112M-8	1.5	2	680	4.40	4.18	4.03	75	0.69	21	5	1.8	2	0.0149	50
Y2-132S-8	2.2	3	710	6.04	5.73	5.53	78	0.71	30	6	1.8	2	0.0314	63
Y2-132M-8	3	4	710	7.90	7.51	7.24	79	0.73	40	6	1.8	2	0.0395	79
Y2-160M1-8	4	5.5	710	10.3	9.76	9.41	81	0.73	54	6	1.9	2	0.0753	118
Y2-160M2-8	5.5	7.5	720	13.6	12.9	12.5	83	0.74	73	6	2	2	0.0931	119
Y2-160L-8	7.5	10	720	17.8	16.9	16.3	85.5	0.75	99	6	2	2	0. 126	145
Y2-180L-8	11	15	720	25.1	23.9	23.0	87.5	0.76	146	6.6	2	2	0. 203	184
Y2-200L-8	15	20	730	34.1	32.4	31.2	88	0.76	196	6.6	2	2	0. 339	250
Y2-225S-8	18.5	25	730	41.1	39.0	37.6	90	0.76	242	6.6	1.9	2	0.491	266
Y2-225M-8	22	30	730	47.4	45.0	43.4	90.5	0.78	288	6.6	1.9	2	0.547	292
Y2-250M-8	30	40	730	63.4	60.2	58.1	91	0.79	392	6.6	1.9	2	0.834	405
Y2-280S-8	37	50	730	77.8	73.9	71.2	91.5	0.79	484	6.6	1.9	2	1.39	520
Y2-280M-8	45	60	730	94.1	89.4	86.1	92	0.79	589	6.6	1.9	2	1.65	592
Y2-315S-8	55	75	730	111.2	105.6	101.8	92.8	0.81	720	6.6	1.8	2	4.79	1000
Y2-315M-8	75	100	740	151.3	143.7	138.5	93	0.81	968	6.6	1.8	2	5.58	1100
Y2-315L1-8	90	125	740	177.8	168.9	162.8	93.8	0.82	1161	6.6	1.8	2	6.37	1160
Y2-315L2-8	110	150	740	216.8	206.0	198.5	94	0.82	1420	6.4	1.8	2	7.23	1230
Y2-355M1-8	132	180	740	261.0	248.0	239.0	93.7	0.82	1704	6.4	1.8	2	10.55	1600
Y2-355M2-8	160	220	740	314.7	299.0	288.2	94.2	0.82	2065	6.4	1.8	2	11.73	1700
Y2-355L1-8	200	270	740	387.4	368.1	354.8	94.5	0.83	2581	6.4	1.8	2	12.86	1800
Y2-355L2-8	220	300	740	426.2	404.9	390.2	94.5	0.83	2839	6.4	1.8	2	13.96	1946
Y2-400M1-8	250	340	740	472.4	448.8	432.5	94.6	0.85	3226	6	1.6	1.8	25.6	3050
Y2-400M2-8	280	380	740	529.1	502.6	484.5	94.6	0.85	3614	6	1.6	1.8	26.5	3150
Y2-400L1-8	315	430	740	595.2	565.4	545.0	94.6	0.85	4065	6	1.6	1.8	27.8	3300
Y2-400L2-8	355	480	740	670.8	637.3	614.2	94.6	0.85	4581	6	1.6	1.8	29.7	3550
380V 50Hz Synchronous Speed 600 r/min (10 poles)
Y2-315S-10	45	60	590	99.6	94.7	91.2	91.5	0.75	728	6.2	1.5	2	4.79	810
Y2-315M-10	55	75	590	121.1	115.1	110.9	92	0.75	890	6.2	1.5	2	6.37	930
Y2-315L1-10	75	100	590	162.1	154.0	148.4	92.5	0.76	1214	6.2	1.5	2	7	1045
Y2-315L2-10	90	120	590	191.0	181.4	174.9	93	0.77	1457	6.2	1.5	2	7.15	1115
Y2-355M1-10	110	150	590	232.9	221.2	213.3	93.2	0.77	1781	6	1.3	2	12.55	1500
Y2-355M2-10	132	180	590	275.0	261.3	251.8	93.5	0.78	2137	6	1.3	2	13.75	1600
Y2-355L1-10	160	220	590	333.3	316.7	305.2	93.5	0.78	2590	6	1.3	2	14.86	1700
Y2-355L2-10	185	250	590	385.4	366.1	352.9	93.5	0.78	2994	6	1.3	2	15.97	1830
Y2-400M1-10	200	270	590	405.4	385.1	371.2	93.7	0.8	3237	6	1.2	1.8	18.56	3100
Y2-400M2-10	220	300	590	445.9	423.6	408.3	93.7	0.8	3561	6	1.2	1.8	19.37	3250
Y2-400L1-10	250	340	590	506.7	481.4	464.0	93.7	0.8	4047	6	1.2	1.8	21.95	3540
Y2-400L2-10	280	380	590	567.5	539.2	519.7	93.7	0.8	4532	6	1.2	1.8	22.75	3780
