PRPDUCT INTRODUCTION

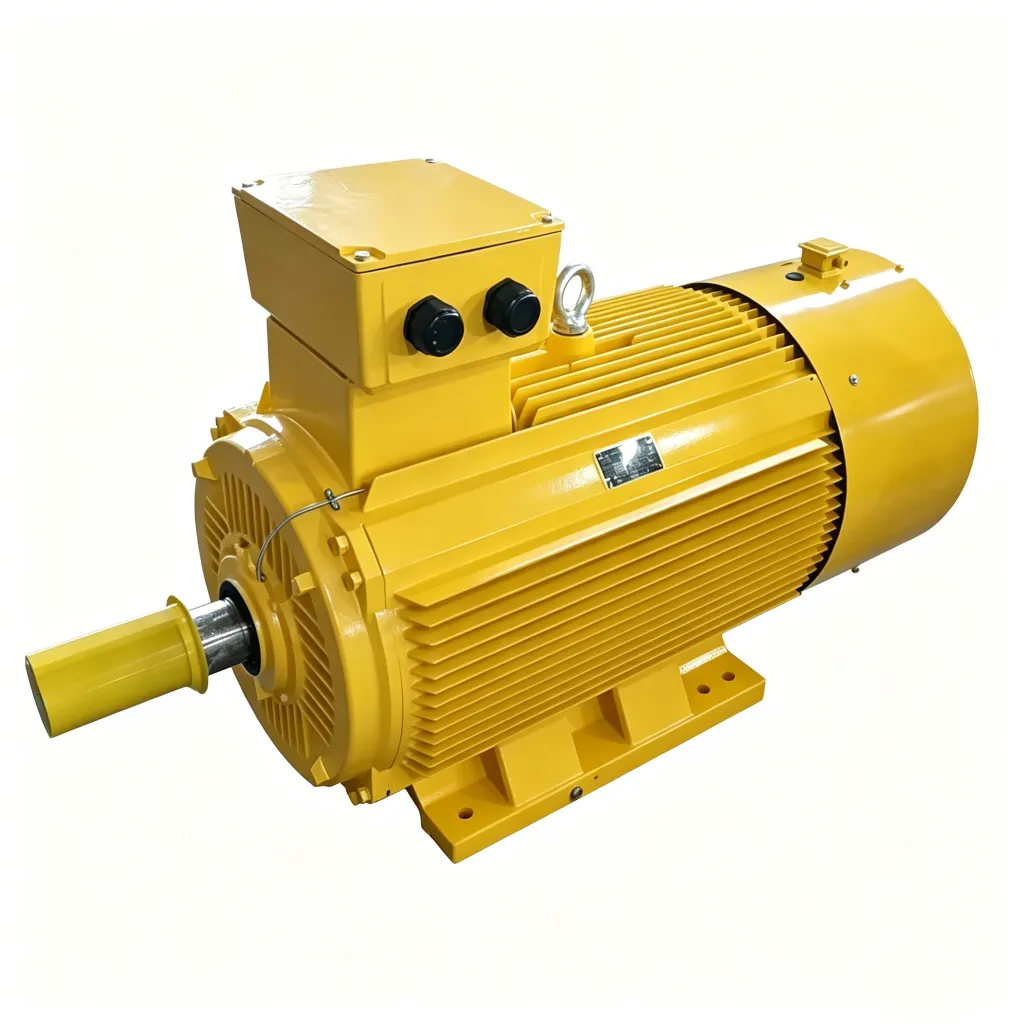

The YVP series Inverter duty electrics motor adopts a high strength cast iron structure and features high reliability, wide speed regulation range, and high precision. Its installation dimensions and power ratings are consistent with those of the IE3 series variable frequency speed regulation three phase asynchronous motors.

Inverter duty electric motor has strong interchangeability and applicability. The variable frequency operation system is equipped with an independent cooling fan to ensure that the motor has a good cooling effect at different speeds.

TECHNICAL PARAMETERS

Type	Rated		Rated	Rated			Efficiency	Power	Tmax/Tn	Constant	Constant	Weight
	power			current						Torque	Output
				at						Frequency	Frequency
			speed	380V	400V	415V		factor		Range	Range
	(kW)	(HP)	(r/min)	(A)	(A)	(A)	(η%)	(cosφ)	(times)	(Hz)	(Hz)	(kg)
Synchronous Speed 3000 r/min (2 poles)
YVP2-631-2	0.18	0.25	2720	0.53	0.50	0.48	65.0	0.80	2.8	5-50	50-100	12
YVP2-632-2	0.25	0.34	2720	0.69	0.66	0.63	68.0	0.81				13
YVP2-711-2	0.37	0.5	2740	0.99	0.94	0.91	70.0	0.81				14
YVP2-712-2	0.55	0.75	2740	1.40	1.33	1.28	73.0	0.82				15
YVP2-801-2	0.75	1	2830	1.8	1.7	1.6	77.4	0.83				16
YVP2-802-2	1.1	1.5	2830	2.5	2.4	2.3	79.8	0.84				17
YVP2-90S-2	1.5	2	2840	3.3	3.1	3.0	81.4	0.85				22
YVP2-90L-2	2.2	3	2840	4.7	4.4	4.3	83.2	0.86				25
YVP2-100L-2	3	4	2870	6.1	5.8	5.6	84.6	0.88				33
YVP2-112M-2	4	5.5	2890	7.9	7.5	7.3	86.0	0.89				45
YVP2-132S-2	5.5	7.5	2900	10.8	10.2	9.9	87.2	0.89				64
YVP2-132S2-2	7.5	10	2900	14.5	13.8	13.3	88.2	0.89				70
YVP2-160M1-2	11	15	2900	21.0	19.9	19.2	89.6	0.89				117
YVP2-160M2-2	15	20	2930	28.0	26.6	25.6	90.4	0.90				125
YVP2-160L-2	18.5	25	2930	34.7	33.0	31.8	90.9	0.89				147
YVP2-180M-2	22	30	2940	41.1	39.0	37.6	91.4	0.89				1 80
YVP2-200L-2	30	40	2950	55.5	52.8	50.9	92.2	0.89				240
YVP2-200L2-2	37	50	2950	68.2	64.8	62.5	92.6	0.89				255
YVP2-225M-2	45	60	2950	82.6	78.5	75.6	93.0	0.89				309
YVP2-250M-2	55	75	2970	100.6	95.6	92.1	93.3	0.89		3-50		403
YVP2-280S-2	75	100	2970	136.4	129.5	124.9	93.9	0.89				544
YVP2-280M-2	90	125	2970	163.1	155.0	149.4	94.2	0.89				620
YVP2-315S-2	110	150	2970	196.7	186.9	180.1	94.4	0.90			50-80	980
YVP2-315M-2	132	180	2970	235.3	223.5	215.5	94.7	0.90				1080
YVP2-315L1-2	160	220	2980	281.5	267.4	257.8	94.9	0.91				1160
YVP2-315L2-2	200	270	2980	355.4	337.6	325.4	95.0	0.90				1190
YVP2-355M1-2	220	300	2980	385.8	366.6	353.3	95.2	0.91			50-70	1590
YVP2-355M2-2	250	340	2980	438.5	416.5	401.5	95.2	0.91				1760
YVP2-355L1-2	280	380	2980	490.0	465.5	448.7	95.4	0.91				1790
YVP2-355L2-2	315	430	2980	551.3	523.7	504.8	95.4	0.91				1850
YVP2-400M1-2	355	480	2990	604.1	573.9	553.2	96.0	0.93			50-60	2650
YVP2-400M2-2	400	540	2990	680.7	646.7	623.3	96.0	0.93				2800
YVP2-400L1-2	450	600	2990	774.1	735.4	708.9	96.0	0.92				3000
YVP2-400L2-2	500	680	2990	850.9	808.4	779.1	96.0	0.93				3230
Synchronous Speed 1500 r/min (4 poles)
YVP2-631-4	0.12	0.16	1310	0.44	0.42	0.41	57.0	0.72	2.8	5-50	50-100	13
YVP2-632-4	0.18	0.25	1310	0.62	0.59	0.57	60.0	0.73				14
YVP2-711-4	0.25	0.34	1330	0.79	0.75	0.72	65.0	0.74				15
YVP2-712-4	0.37	0.5	1330	1.12	1.06	1.02	67.0	0.75				16
YVP2-801-4	0.55	0. 75	1390	1.51	1.44	1.38	79.0	0.70				17
YVP2-802-4	0.75	1	1390	1.86	1.77	1.70	79.6	0.77				18
YVP2-90S-4	1.1	1.5	1400	2.63	2.50	2.41	81.5	0.78				22
YVP2-90L-4	1.5	2	1400	3.48	3.31	3.19	82.8	0.79				27
YVP2-100L1-4	2.2	3	1430	4.90	4.65	4.48	84.3	0.81				34
YVP2-100L2-4	3	4	1430	6.50	6.18	5.95	85.5	0.82				38
YVP2-112M-4	4	5.5	1430	8.66	8.23	7.93	86.6	0.81				43
YVP2-132S-4	5.5	7.5	1440	11.62	11.04	10.64	87.7	0.82				68
YVP2-132M-4	7.5	10	1440	15.48	14.70	14.17	88.7	0.83				81
YVP2-160M-4	11	15	1460	22.40	21.28	20.51	89.9	0.83				123
YVP2-160L-4	15	20	1460	29.88	28.39	27.36	90.8	0.84				144
YVP2-180M-4	18.5	25	1460	35.80	34.01	32.78	91.3	0.86				182
YVP2-180L-4	22	30	1470	42.39	40.27	38.81	91.7	0.86				190
YVP2-200L-4	30	40	1470	58.04	55.13	53.14	92.4	0.85				270
YVP2-225S-4	37	50	1470	70.52	66.99	64.57	92.7	0.86				284
YVP2-225M-4	45	60	1480	85.40	81.13	78.19	93.1	0.86				320
YVP2-250M-4	55	75	1480	103.93	98.73	95.16	93.5	0.86		3-50		427
YVP2-280S-4	75	100	1480	139.3	132.4	127.6	94.0	0.87				562
YVP2-280M-4	90	125	1480	164.8	156.5	150.9	94.3	0.88				667
YVP2-315S-4	110	150	1480	198.7	188.8	182.0	94.5	0.89			50-80	1000
YVP2-315M-4	132	180	1490	238.0	226.1	217.9	94.7	0.89				1100
YVP2-315L1-4	160	220	1490	284.6	270.4	260.6	94.9	0.90				1160
YVP2-315L2-4	200	270	1490	355.0	337.3	325.1	95.1	0.90				1270
YVP2-355M1-4	220	300	1490	390.1	370.6	357.2	95.2	0.90			50-70	1570
YVP2-355M2-4	250	340	1490	443.3	421.2	405.9	95.2	0.90				1700
YVP2-355L1-4	280	380	1490	495.5	470.7	453.7	95.4	0.90				1790
YVP2-355L2-4	315	430	1490	557.4	529.6	510.4	95.4	0.90				1850
YVP2-400M1-4	355	480	1490	624.3	593.1	571.6	96.0	0.90			50-60	3000
YVP2-400M2-4	400	540	1490	703.4	668.2	644.1	96.0	0.90				3150
YVP2-400L1-4	450	600	1490	791.3	751.8	724.6	96.0	0.90				3320
YVP2-400L2-4	500	680	1490	879.3	835.3	805.1	96.0	0.90				3560
Synchronous Speed 1000 r/min (6 poles)
YVP2-711-6	0.18	0.25	850	0.74	0.70	0.68	56.0	0.66	2.6	5-50	50-100	9.5
YVP2-712-6	0.25	0.34	850	0.95	0.90	0.87	59.0	0.68				11
YVP2-80M1-6	0.37	0.5	890	1.30	1.23	1.19	62.0	0.70				17
YVP2-80M2-6	0.55	0.75	890	1.79	1.70	1.64	65.0	0.72				19
YVP2-90S-6	0.75	1	910	2.1	2.0	1.9	76.1	0.71				23
YVP2-90L-6	1.1	1.5	910	2.9	2.8	2.7	78.2	0.73				25
YVP2-100L-6	1.5	2	940	3.9	3.7	3.6	79.8	0.73				33
YVP2-112M-6	2.2	3	940	5.6	5.3	5.1	82.0	0.73				45
YVP2-132S-6	3	4	940	7.6	7.2	6.9	83.5	0.72				63
YVP2-132M1-6	4	5.5	960	9.7	9.2	8.9	84.6	0.74				73
YVP2-132M2-6	5.5	7.5	960	12.8	12.1	11.7	86.0	0.76				84
YVP2-160M-6	7.5	10	960	16.7	15.9	15.3	87.5	0.78				119
YVP2-160L-6	11	15	970	23.8	22.6	21.8	88.9	0.79				147
YVP2-180L-6	15	20	970	30.6	29.0	28.0	89.8	0.83				195
YVP2-200L1-6	18.5	25	970	38.3	36.4	35.1	90.6	0.81				220
YVP2-200L2-6	22	30	970	44.4	42.1	40.6	91.9	0.82				250
YVP2-225M-6	30	40	970	60.6	57.5	55.4	91.8	0.82				292
YVP2-250M-6	37	50	970	73.5	69.8	67.3	92.2	0.83				408
YVP2-280S-6	45	60	980	86.8	82.4	79.5	92.7	0.85				536
YVP2-280M-6	55	75	980	104.4	99.2	95.6	93.1	0.86				595
YVP2-315S-6	75	100	980	144.6	137.4	132.4	93.8	0.84				990
YVP2-315M-6	90	125	980	171.0	162.4	156.5	94.1	0.85				1080
YVP2-315L1-6	110	150	980	208.3	197.9	190.7	94.4	0.85				1150
YVP2-315L2-6	132	180	990	246.5	234.2	225.7	94.6	0.86				1210
YVP2-355M1-6	160	220	990	298.2	283.3	273.0	94.8	0.86				1600
YVP2-355M2-6	200	270	990	367.3	348.9	336.3	95.1	0.87				1700
YVP2-355L1-6	220	300	990	408.7	388.3	374.2	95.1	0.86				1790
YVP2-355L2-6	250	340	990	464.4	441.2	425.3	95.1	0.86				1800
YVP2-400M1-6	315	430	990	585.2	555.9	535.8	95.1	0.86				3050
YVP2-400M2-6	355	480	990	659.5	626.5	603.9	95.1	0.86				3180
YVP2-400L1-6	400	540	990	743.1	705.9	680.4	95.1	0.86				3360
YVP2-400L2-6	450	600	990	836.0	794.2	765.5	95.1	0.86				3580
Synchronous Speed 750 r/min (8 polos)
YVP2-801-8	0.18	0.25	630	0.88	0.84	0.80	51.0	0.61	2.6	5-50	50-100	17
YVP2-802-8	0.25	0. 34	640	1.2	1.1	1.1	54.0	0.61				19
YVP2-90S-8	0.37	0.5	660	1.5	1.4	1.4	62.0	0.61				23
YVP2-90L-8	0.55	0.75	660	2.2	2.1	2.0	63.0	0.61				25
YVP2-100L1-8	0.75	1	690	2.4	2.3	2.2	71.0	0.67				33
YVP2-100L2-8	1.1	1.5	690	3.3	3.2	3.0	73.0	0.69				38
YVP2-112M-8	1.5	2	690	4.4	4.2	4.0	75.0	0.69				50
YVP2-132S-8	2.2	3	710	6.0	5.7	5.5	78.0	0.71				63
YVP2-132M-8	3	4	710	7.9	7.5	7.2	79.0	0.73				79
YVP2-160M1-8	4	5.5	710	10.3	9.8	9.4	81.0	0.73				118
YVP2-160M2-8	5.5	7.5	720	13.6	12.9	12.5	83.0	0.74				119
YVP2-160L-8	7.5	10	720	17.8	16.9	16.3	85.5	0.75				145
YVP2-180L-8	11	15	720	25.1	23.9	23.0	87.5	0.76				184
YVP2-200L-8	15	20	730	34.1	32.4	31.2	88.0	0.76				250
YVP2-225S-8	18.5	25	730	41.1	39.0	37.6	90.0	0.76				266
YVP2-225M-8	22	30	730	47.4	45.0	43.4	90.5	0.78				292
YVP2-250M-8	30	40	730	63.4	60.2	58.1	91.0	0.79				405
YVP2-280S-8	37	50	730	77.8	73.9	71.2	91.5	0.79				520
YVP2-280M-8	45	60	730	94.1	89.4	86.1	92.0	0.79				592
YVP2-315S-8	55	75	730	111.2	105.6	101.8	92.8	0.81				1000
YVP2-315M-8	75	100	740	151.3	143.7	138.5	93.0	0.81				1100
YVP2-315L1-8	90	125	740	177.8	168.9	162.8	93.8	0.82				1160
YVP2-315L2-8	110	150	740	216.8	206.0	198.5	94.0	0.82				1230
YVP2-355M1-8	132	180	740	261.0	248.0	239.0	93.7	0.82				1600
YVP2-355M2-8	160	220	740	314.7	299.0	288.2	94.2	0.82				1700
YVP2-355L1-8	200	270	740	387.4	368.1	354.8	94.5	0.83				1800
YVP2-355L2-8	220	300	740	426.2	404.9	390.2	94.5	0.83				1946
YVP2-400M1-8	250	340	740	472.4	448.8	432.5	94.6	0.85				3050
YVP2-400M2-8	280	380	740	529.1	502.6	484.5	94.6	0.85				3150
YVP2-400L1-8	315	430	740	595.2	565.4	545.0	94.6	0.85				3300
YVP2-400L2-8	355	480	740	670.8	637.3	614.2	94.6	0.85				3550
Synchronous Speed 600 r/min (10 poles)
YVP2-315S-10	45	60	590	99.6	94.7	91.2	91.5	0.75	2.5	5-50	50-100	810
YVP2-315M-10	55	75	590	121.1	115.1	110.9	92.0	0.75				930
YVP2-315L1-10	75	100	590	162.1	154.0	148.4	92.5	0.76				1045
YVP2-315L2-10	90	120	590	191.0	181.4	174.9	93.0	0.77				1115
YVP2-355M1-10	110	150	590	232.9	221.2	213.3	93.2	0.77				1500
YVP2-355M2-10	132	180	590	275.0	261.3	251.8	93.5	0.78				1600
YVP2-355L1-10	160	220	590	333.3	316.7	305.2	93.5	0.78				1700
YVP2-355L2-10	185	250	590	385.4	366.1	352.9	93.5	0.78				1830
YVP2-400M1-10	200	270	590	405.4	385.1	371.2	93.7	0.80				3100
YVP2-400M2-10	220	300	590	445.9	423.6	408.3	93.7	0.80				3250
YVP2-400L1-10	250	340	590	506.7	481.4	464.0	93.7	0.80				3540
YVP2-400L2-10	280	380	590	567.5	539.2	519.7	93.7	0.80				3780
